Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Kingwire
  • Model Number: Cat7 SFTP SSTP LSZH Cable 23AWG 10gbase
  • Type: Cat 7
  • Number of Conductors: 8
  • Product name: Cat7 SFTP SSTP LSZH Cable 23AWG 10gbase
  • Jacket: PVC or LSZH
  • Color: Green Black Yellow White Blue(Customized available)
  • Cable length: 1M/2M/3M/5M/10M (Customized)
  • Connector: RJ45 Plug
  • Shield: SFTP/SSTP
  • channel Bandwith: 600MHz
  • Transmission Speed: 10GBASE-T
  • Certification: ISO9001,CE,ROHS
  • Braid Material: Al-MG

Packaging & Delivery

Packaging Details Single loaded neutral PE bags
Delivery Time 5-10days after receiving the deposit
26awg Sstp Cat7 Patch Cable 10gbps high speed
Product Description


Key Features of 26awg Sstp Cat7 Patch Cable 10gbps

1.DOUBLE SHIELDED TWISTED PAIR SSTP CABLE - Each Twisted Pair is shielded with Aluminum Mylar Foil - Plus 80% Aluminum-Magnesium braid

2.10 GBPS DATA SPEED - Compliant with ANSI/TIA/EIA 568-B, 2-1, Up to 10 Gbps Speed and Meet all Proposed CAT-7 Requirements
3.PROTECTION FROM INTERFERENCE - Shielded RJ45 Connector to Protect Against EMI/RFI Interference
4.HIGH QUALITY SHIELDED RJ45 CONNECTORS - 50 Micron Gold plated Contact Pins in each Shielded RJ45 Connector
5.GREAT NETWORKING COMPATIBILITY - Backward Compatible with Cat-5e / Cat-6 / Cat-6a Ethernet Cables



Specification of 26awg Sstp Cat7 Patch Cable 10gbps

ItemKignwire 26awg Sstp Cat7 Patch Cable 10gbps
ConductorBare Copper
InsulationFoamed PE
Number Of Conductor8pcs/ 4pairs
Conductor (mm)


Data transfer rate10GBASE-T
Rated temperature75 ° C
CertificatesCE, RoHS
ApplicationComputer and other Internet devices
PackagingPE bag/Blister bag/Carton box etc (Customized)
CustomizingColor of PVC jacket, words on cable & packaging customized on customers' request


Construction of 26awg Sstp Cat7 Patch Cable 10gbps




Insulation ID







Overall Diameter


287/0.131.004P AL/Mylar   TC or AL-MG6.00
277/0.140.8 6.00
267/0.161.0 6.20
231/0.581.02 8.00
Product Details of 26awg Sstp Cat7 Patch Cable 10gbps
Application of 26awg Sstp Cat7 Patch Cable 10gbps

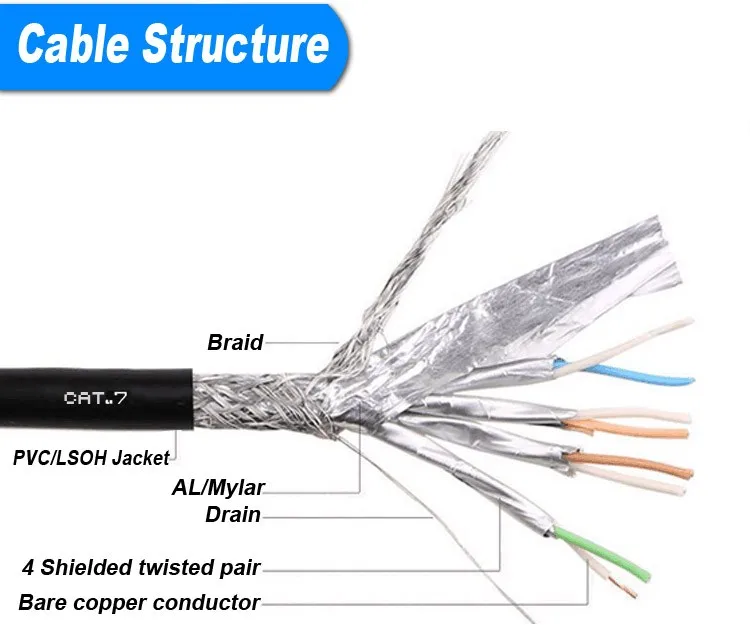

Cat7 Ethernet cable is Double-shielded twisted pair SSTP patch cord with aluminum Mylar foil, 80% tinned copper braid shield.


The CAT 7 LAN network cable is a four-pair data cable for transmission frequencies over 600 MHz / 1000 Mbit
CAT 7 Cable shielding has been added for individual wire pairs and the cable as a whole. Besides the shield, the twisting of the pairs and number of turns per unit length increases RF shielding and protects from crosstalk.

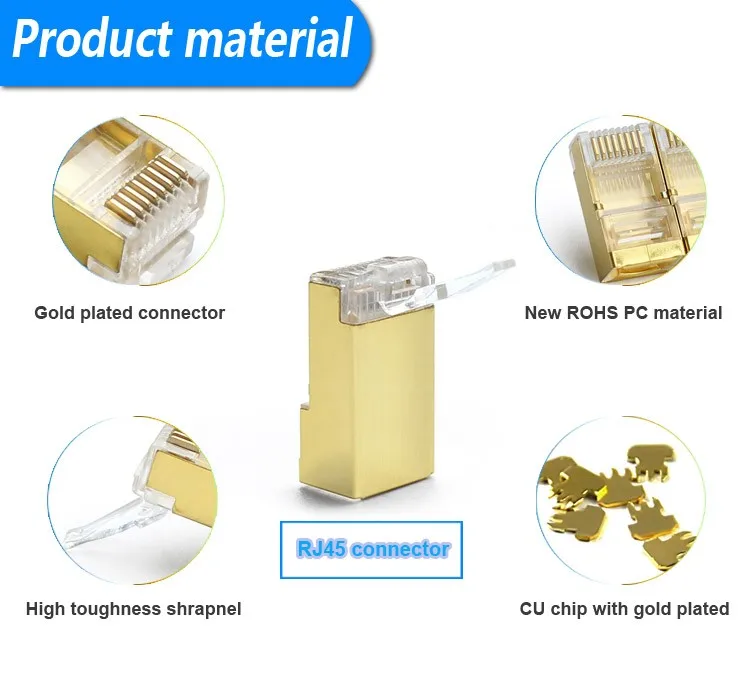

50 micron gold-plated or Nickleplated Snagless conductors in each shielded 8P8C RJ45 connectors. The 24 carat gold plated contact surface ensures low transfer resistance and guarantees long lasting protection from oxidation, which can lead to a loss of signal with conventional plug connections.
Compliant with ANSI/TIA/EIA 568-B, 2-1, Allows up to 10 Gigabit Ethernet speed, and meets all proposed Cat7 requirements
