Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Kingwire
  • Model Number: SSTP CAT.7 CABLE with RJ45 gold plated plug
  • Type: Cat 7
  • Number of Conductors: 8
  • Product name: SSTP CAT.7 CABLE with RJ45 gold plated plug
  • Jacket: PVC

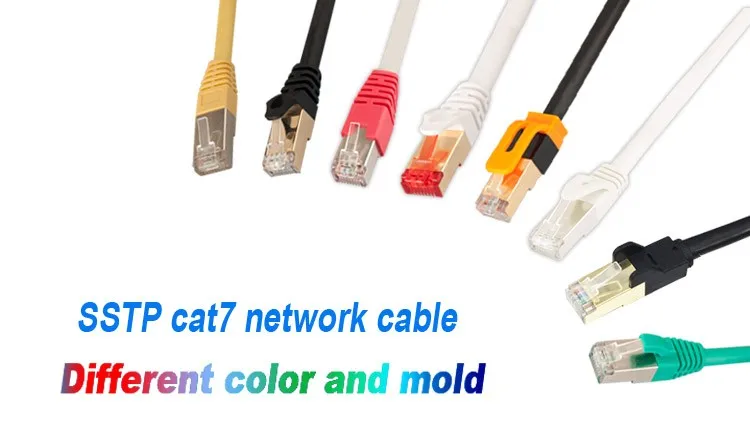

  • Color: Green Black Yellow White Blue(Customized available)
  • Cable length: 1M/2M/3M/5M/10M (Customized)
  • Connector: RJ45 Plug
  • Shield: SFTP/SSTP
  • channel Bandwith: 600MHz
  • Transmission Speed: 10GBASE-T
  • Certification: ISO9001,CE,ROHS
  • Braid Material: Al-MG

Packaging & Delivery

Packaging Details: Single loaded neutral PE bags
Delivery Detail: 5-10days after receiving the deposit
600MHz 10gigabit SSTP Patch Cable Cat7 Fluke Test passed
Product Description



Key Features of SSTP CAT.7 CABLE with RJ45 gold plated plug

1.DOUBLE SHIELDED TWISTED PAIR SSTP CABLE - Each Twisted Pair is shielded with Aluminum Mylar Foil - Plus 80% Aluminum-Magnesium braid

2.10 GBPS DATA SPEED - Compliant with ANSI/TIA/EIA 568-B, 2-1, Up to 10 Gbps Speed and Meet all Proposed CAT-7 Requirements
3.PROTECTION FROM INTERFERENCE - Shielded RJ45 Connector to Protect Against EMI/RFI Interference
4.HIGH QUALITY SHIELDED RJ45 CONNECTORS - 50 Micron Gold plated Contact Pins in each Shielded RJ45 Connector
5.GREAT NETWORKING COMPATIBILITY - Backward Compatible with Cat-5e / Cat-6 / Cat-6a Ethernet Cables





Specification of SSTP CAT.7 CABLE with RJ45 gold plated plug

ItemKignwire SSTP CAT.7 CABLE with RJ45 gold plated plug
ConductorBare Copper
VersionCat7
ShieldingSFTP/SSTP
InsulationFoamed PE
JacketPVC/LSZH
BraidAL-MG
Number Of Conductor8pcs/ 4pairs
Conductor (mm)

23AWG

1/0.58
26AWG7/0.16
27AWG7/0.14
28AWG7/0.13
Data transfer rate10GBASE-T
Rated temperature75 ° C
CertificatesCE, RoHS
ApplicationComputer and other Internet devices
PackagingPE bag/Blister bag/Carton box etc (Customized)

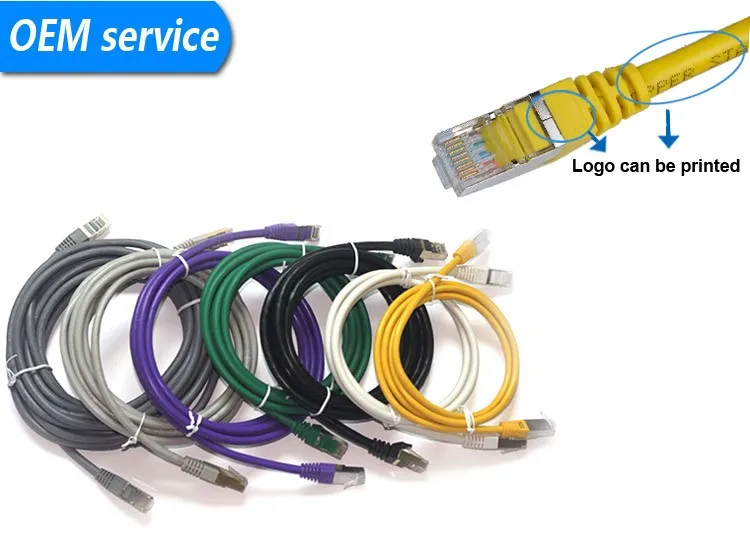

CustomizingColor of PVC jacket, words on cable & packaging customized on customers' request

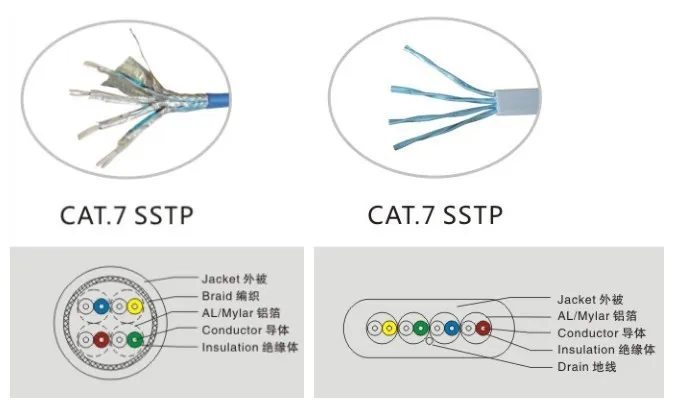

Construction of SSTP CAT.7 CABLE with RJ45 gold plated plug


AWG

Conductor

(mm)

Insulation ID

(NOM.mm)

No.of

Core

SSTP

Shielded

Braid

Overall Diameter

(NOM.mm)


287/0.131.004P AL/Mylar   TC or AL-MG6.00
4.0*9.6
277/0.140.8 6.00
267/0.161.0 6.20
231/0.581.02 8.00

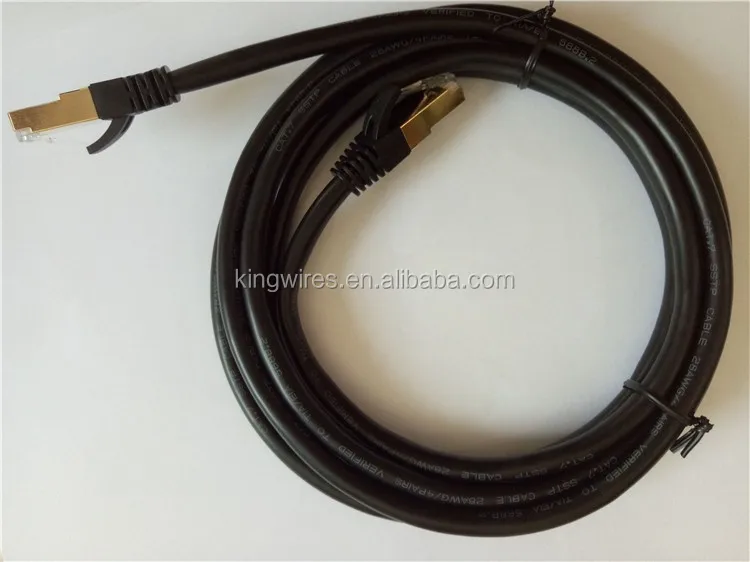

Product Details of SSTP CAT.7 CABLE with RJ45 gold plated plug

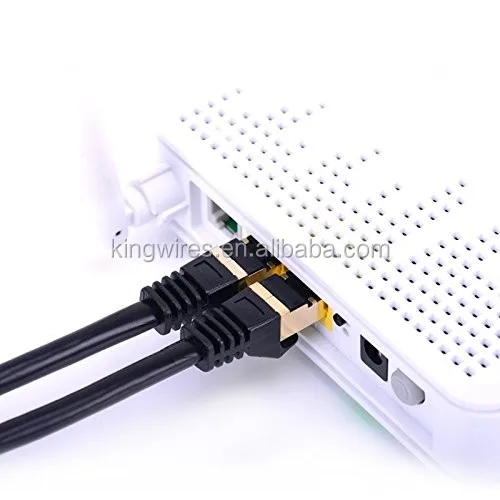

Application of SSTP CAT.7 CABLE with RJ45 gold plated plug


Cat7 Ethernet cable is Double-shielded twisted pair SSTP patch cord with aluminum Mylar foil, 80% tinned copper braid shield.



The CAT 7 LAN network cable is a four-pair data cable for transmission frequencies over 600 MHz / 1000 Mbit
CAT 7 Cable shielding has been added for individual wire pairs and the cable as a whole. Besides the shield, the twisting of the pairs and number of turns per unit length increases RF shielding and protects from crosstalk.

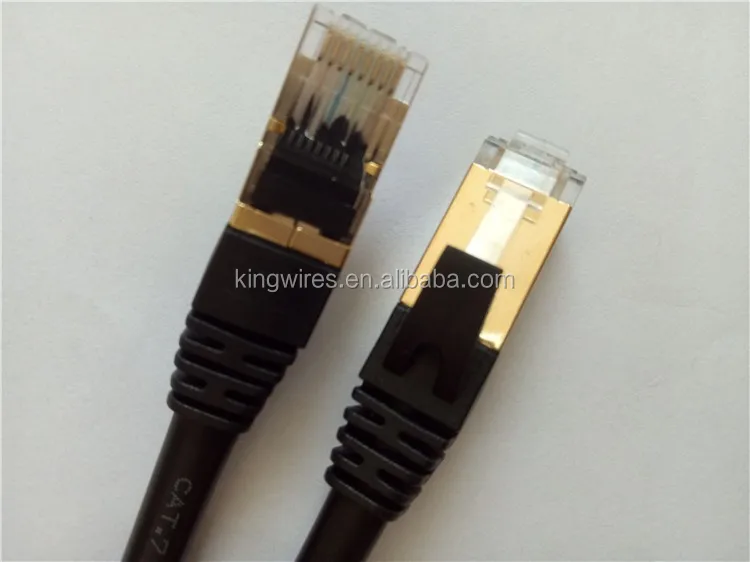

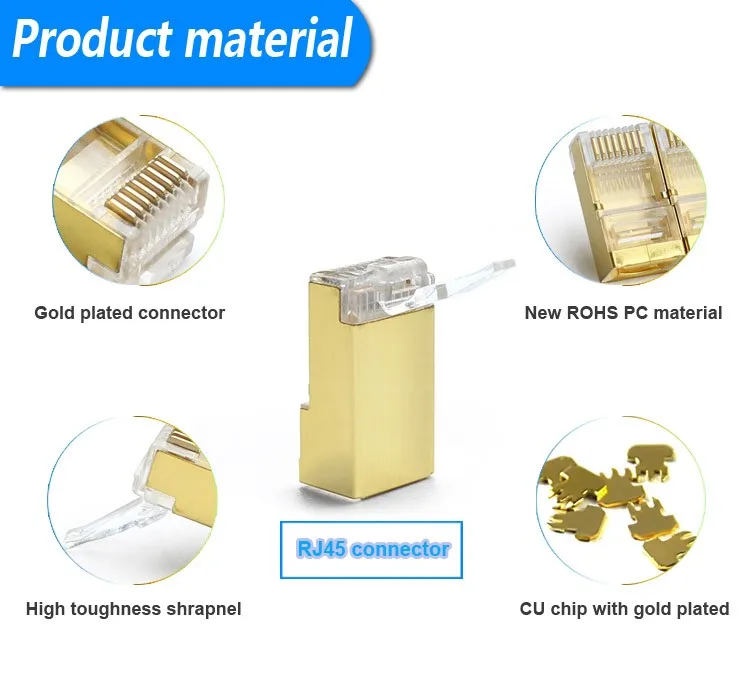

50 micron gold-plated or Nickleplated Snagless conductors in each shielded 8P8C RJ45 connectors. The 24 carat gold plated contact surface ensures low transfer resistance and guarantees long lasting protection from oxidation, which can lead to a loss of signal with conventional plug connections.
Compliant with ANSI/TIA/EIA 568-B, 2-1, Allows up to 10 Gigabit Ethernet speed, and meets all proposed Cat7 requirements

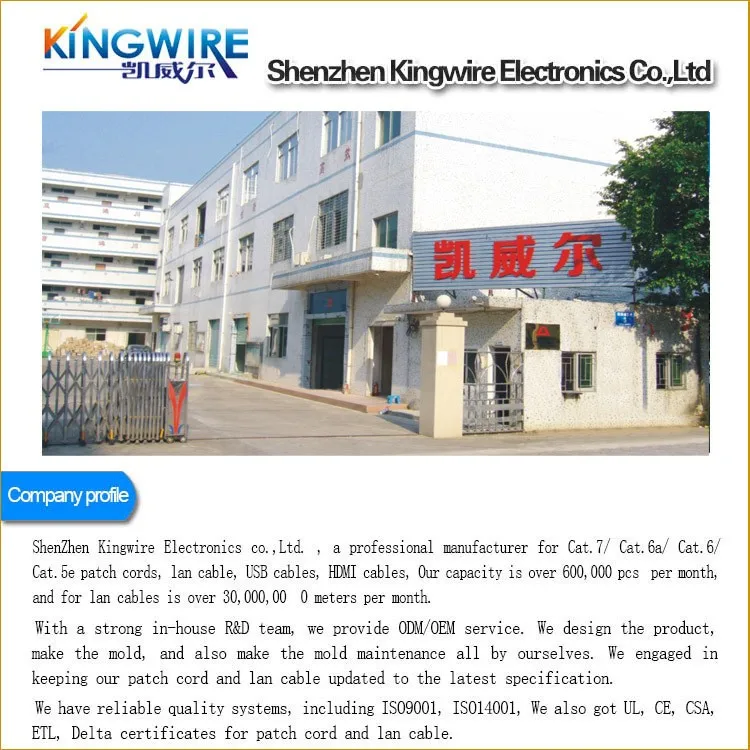

Our Factory


Contact Information
Any questions, feel free to contact me
Contact person: April Zhang
Email: Sales05(@)kingwires.com
Skype: Kingwire05
QQ: 3356714538
