Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Kingwire
  • Model Number: Cat7 Ethernet Flat Patch Network Cable
  • Type: Cat 7
  • Number of Conductors: 8
  • Product name: Cat7 Ethernet Flat Patch Network Cable
  • Jacket: PVC or LSZH
  • Color: Green Black Yellow White Blue(Customized available)
  • Cable length: 3M (Customized available)
  • Connector: Gold plated or nickleplate RJ45 Plug
  • Shield: SSTP
  • channel Bandwith: 600MHz
  • Transmission Speed: 10GBASE-T
  • Certification: ISO9001,CE,ROHS
  • Application: Telecommunications

Packaging & Delivery

Packaging Details Single loaded neutral PE bags
Delivery Time 5-8 working days after the payment

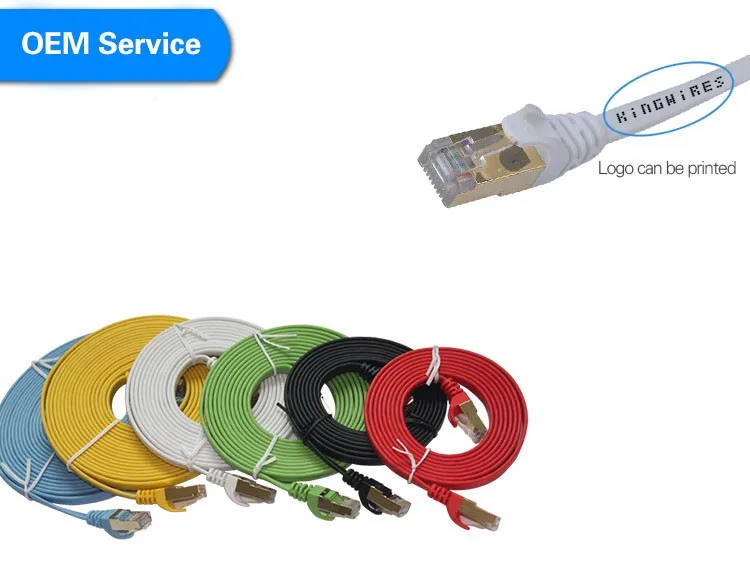

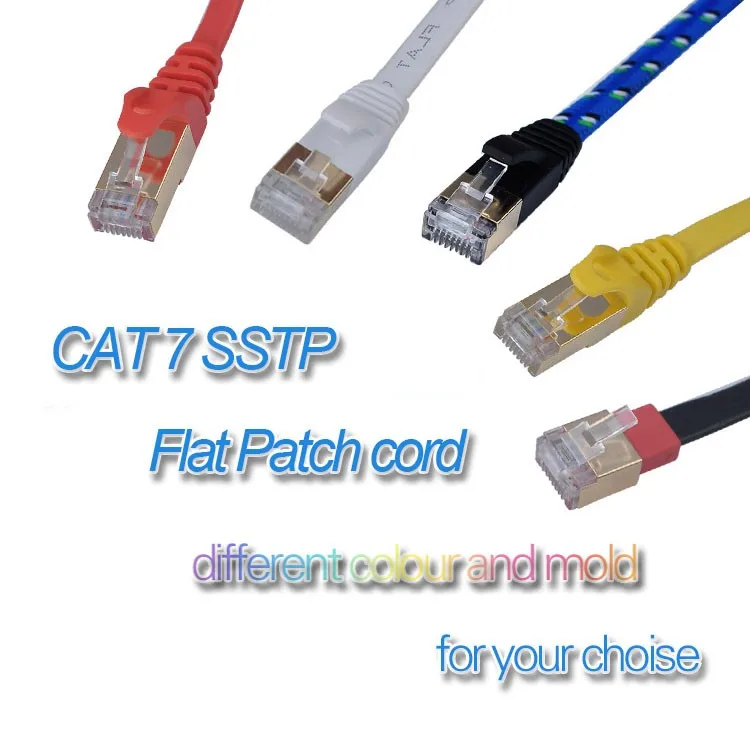

Cat7 Ethernet Flat Patch Network Cable Shielded Gold Plated 10Gbps 600Mhz
Product Description



Key Features of Cat7 Ethernet Flat Patch Network Cable

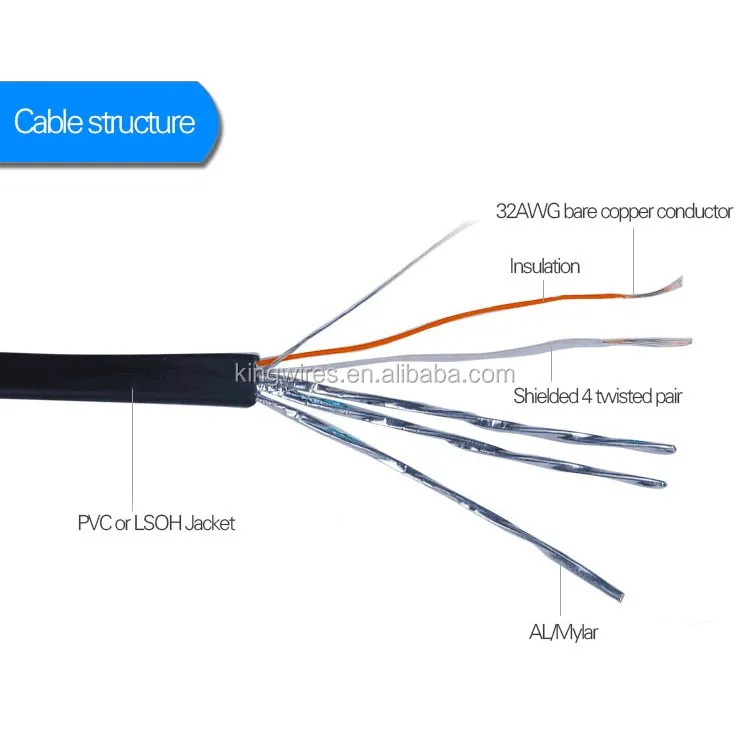

Cat7 Ethernet cable is Double-shielded twisted pair SSTP patch cord with aluminum Mylar foil, 80% tinned copper braid shield. The CAT 7 LAN network cable is a four-pair data cable for transmission frequencies over 600 MHz / 1000 Mbit

CAT 7 Cable shielding has been added for individual wire pairs and the cable as a whole. Besides the shield, the twisting of the pairs and number of turns per unit length increases RF shielding and protects from crosstalk.
50 micron gold-plated or Nickleplated Snagless conductors in each shielded 8P8C RJ45 connectors. The 24 carat gold plated contact surface ensures low transfer resistance and guarantees long lasting protection from oxidation, which can lead to a loss of signal with conventional plug connections.
Compliant with ANSI/TIA/EIA 568-B, 2-1, Allows up to 10 Gigabit Ethernet speed, and meets all proposed Cat7 requirements



Specification of Cat7 Ethernet Flat Patch Network Cable

ItemKingwire Cat7 Ethernet Flat Patch Network Cable
Cable TypeCat7
Rated Temperature75
InsulationHDPE
JacketPVC
Channel Bandwith600MHz
Transmission Speed10GBASE-TX
Conductor32AWG 7/0.08mm Bare Copper
ColorWhite/Black/Green/Yellow/Red/Blue(Customized)
Cable Length0.5M/1M/2M/3M/5M/7M/10M(Customized)
References
Standard
UL444(CM/CMR/CMP grade),USA Standard ANSI/TIA/EIA-568-B.2-1
International Standard ISO/IEC11801,China Standard YD/T1019-2001
ApplicationsMainly uses in the building correspondence synthesis
wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring,
as well as the housing synthesis wiring system'S user correspondence leading-out terminal arrives at place of
exile between coil's wiring





Production Details of Cat7 Ethernet Flat Patch Network Cable



Application of Cat7 Ethernet Flat Patch Network Cable
 Connect network card to any of the following:
1000BASE-T Gigabit Ethernet
100BASE-T Ethernet
100BASE-TX Fast Ethernet
10BASE-T Ethernet

Our Factory


Our Service

Any questions, feel free to contact me
Contact person: April Zhang
Email: Sales05(@)kingwires.com
Skype: Kingwire05
QQ: 3356714538
